CAPABILITIES
Common Machinable Items we have done consist of:
Mild steel, Stainless steel, Aluminum, Brass, Bronze, UHMW, Copper and much more!
MILLING

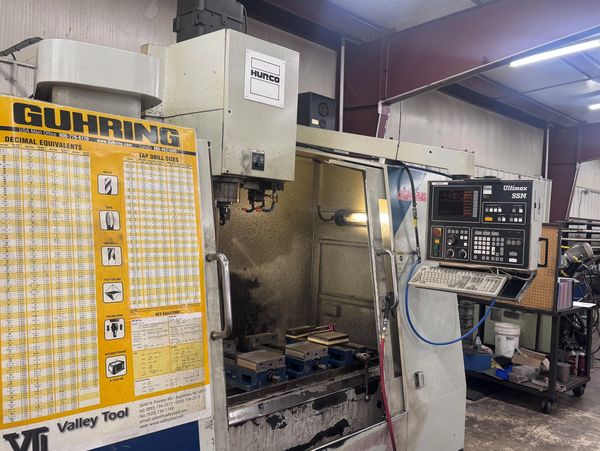

Hurco BMC 3017
3 axis, with travels of x-30” y- 16” z- 22” (able to open side doors to do longer items) Can hold up to 24 tools.

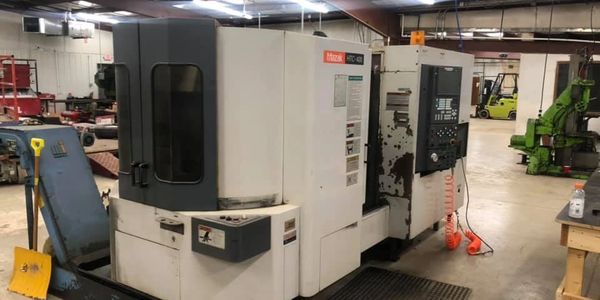

Mazak HTC 400 horizontal mill with pallet changer
Can rotate 360 degrees on both pallets, 4 axis, travel of x-22.05” y-20.08” z- 20.08”. Can do longer parts for end work as well with doors opening. Thru coolant spindle. Can hold up to 30 tools.

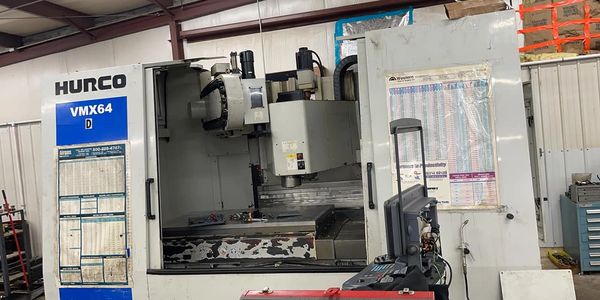

Hurco VMX64
3 axis, travels of x-64”, y-34”, z-30”. (doors open to do longer items if needed) Can hold up to 40 tools.

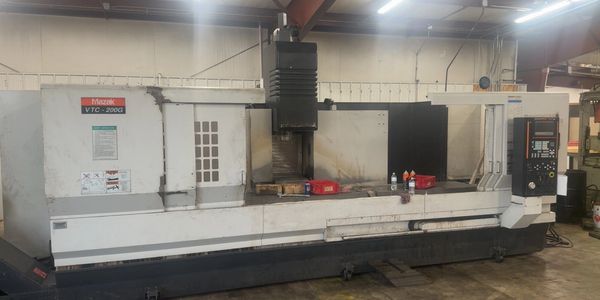

Mazak VTC-200G
Travels: X-144”, Y-20”, Z- 20”. Table is 158” inches and is stationary with moving column. Thru coolant spindle. Can hold 24 tools
TURNING
Mazak QT-20 with Turret
with 9” diameter x 40" center to center with 2-1/2” spindle bore through
Bridgeport Romi CNC Teach Lathe
9” diameter od turning capability x 40” center to center with 2-1/2” spindle bore through
